3-in-1 IAQ Sensor AM100 Series (AM103 & AM103L)

3-in-1 IAQ Sensor
AM100 Series (AM103 & AM103L)

• 3 Sensors in 1 CO2 & Humidity & Temperature
• Vivid Emoticon Indication and Traffic Light Status Indicator
• Starts with our one-stop solution for Indoor Air Quality (IAQ)
• Hibernation Mode for Ultra-Low Power Consumption
• Built-in 2 × 2700 mAh ER14505 Li-SOCL2 replaceable batteries ensure more than 3 years’ service life.

DESCRIPTION

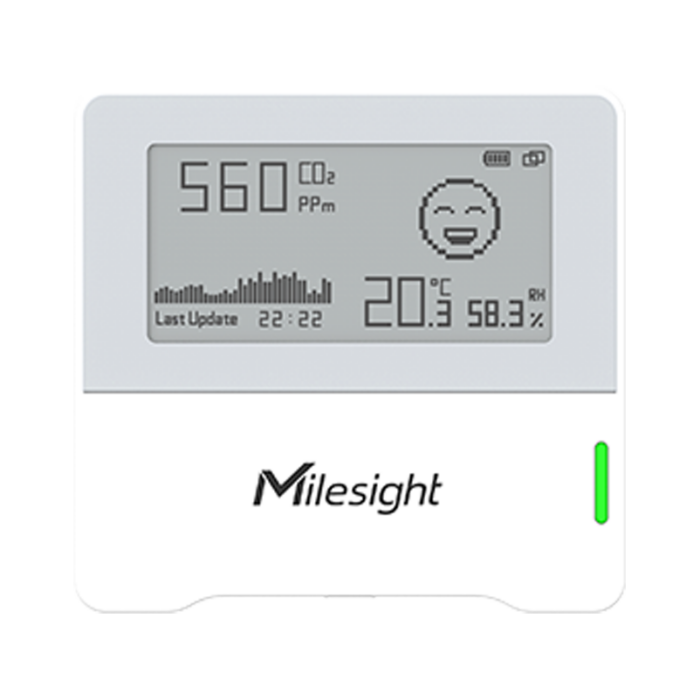

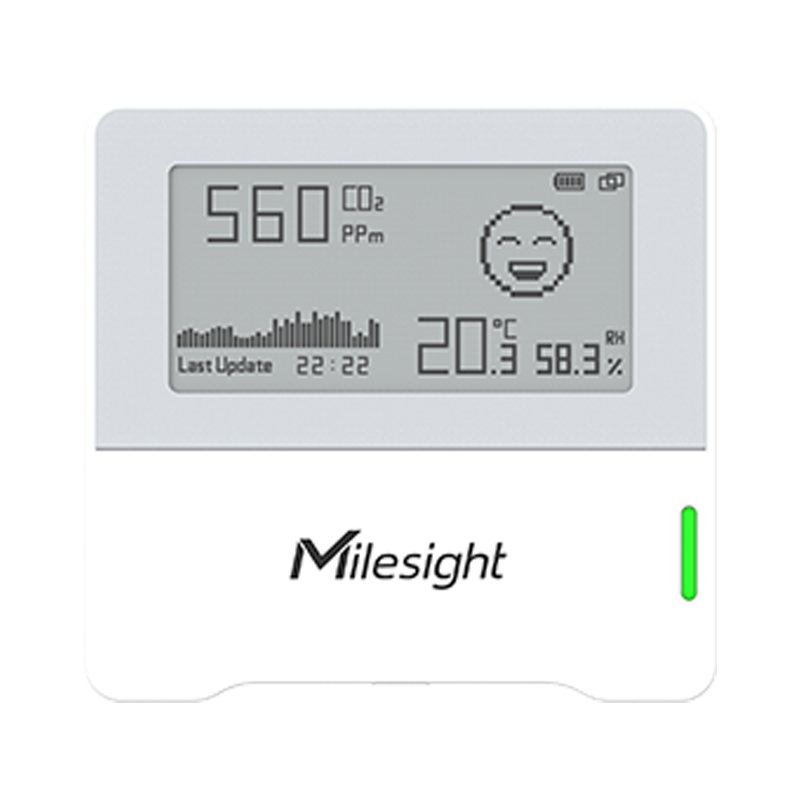

AM103 is a compact indoor ambience monitoring sensor for
measurement of temperature, humidity and CO2. These data will be
shown on the E-ink screen in real-time, which allow to quantify the
indoor environment and comfort. AM103 is widely used for office,
store, classroom, hospital, etc.

Apart from screen display, sensor data can also be transmitted
using LoRaWAN®. With this low-power technology, AM103 can
work for more than 3 years with 2 replaceable batteries.

PRODUCT DATA

Model

AM103 & AM103L

Technology

LoRaWAN®

Frequency

CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4

Mode

OTAA/ABP Class A

Temperature Range

-20°C – 60°C

Humidity Range

0% – 100% RH

Ingress Protection

IP30

Dimensions

68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
