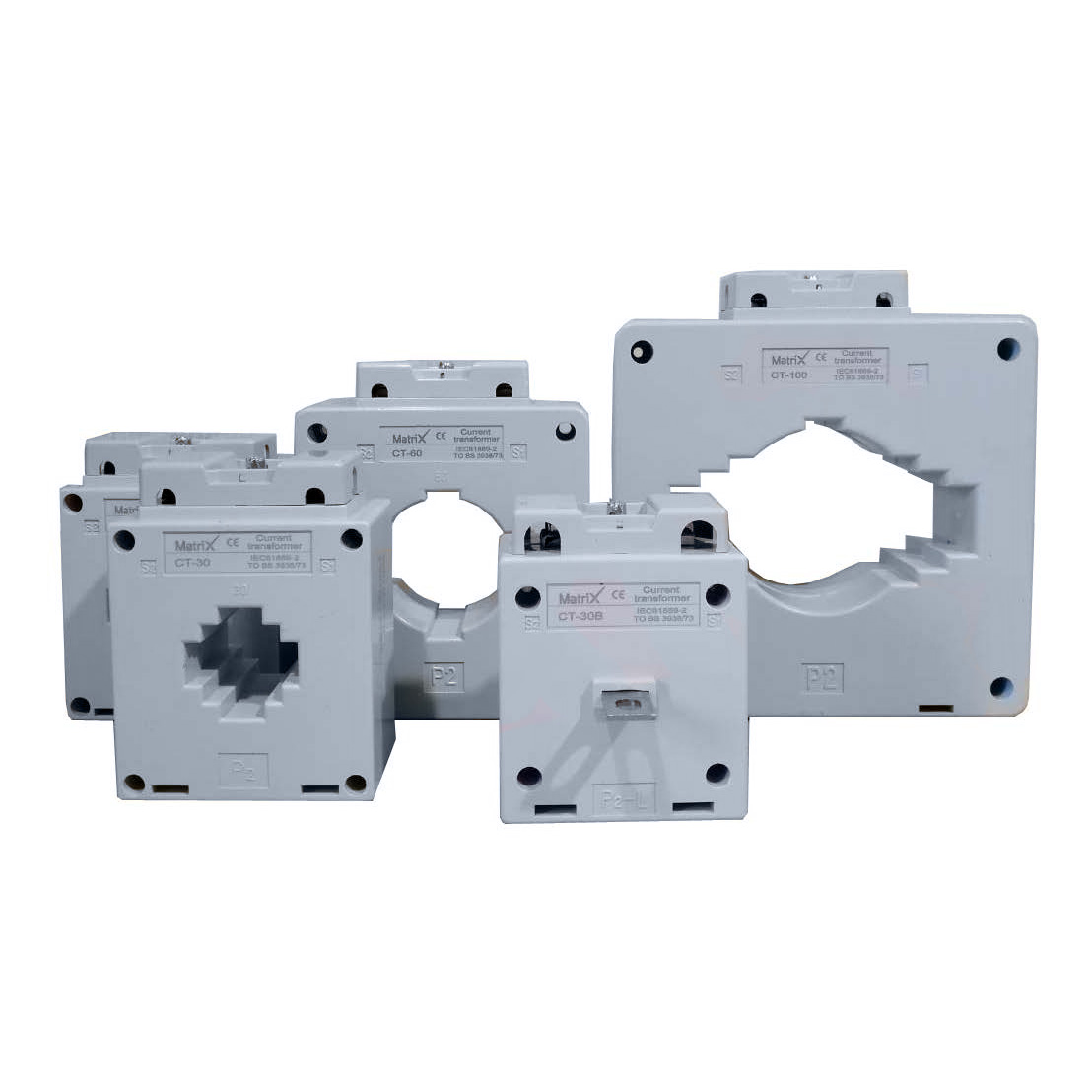

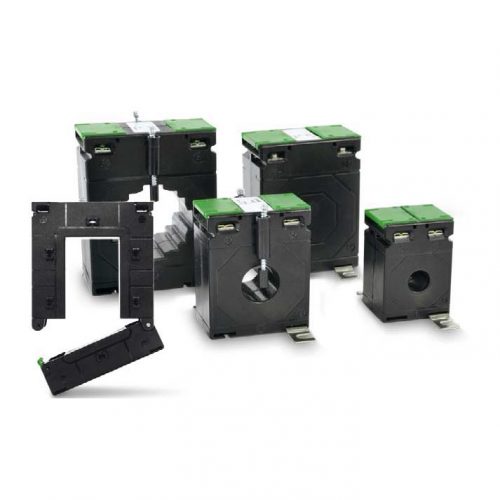

CT-Series Low Voltage Current Transformers

CT-Series
Low Voltage Current Transformers

FEATURE
• Measurement class 0.5, 1.0
• Primary current input 5A~6000A
• Safe, easy to install, portable
• Wide range of sizes to accommodate all the existing installations
• Wide inner window, allowing clamping of big cables
• Standard: EN60044-1, VDE0414-44-1, IEC60044-1, IEC61869-2

DESCRIPTION

CT-Series
Low Voltage Current Transformers

CT-series this series of current transformers can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 660V and the frequency of 50 – 60Hz. The product can be also applied to form a complete set of mine transformer. Flame resistant and self-extinguishing according to UL94-V0 The products complies with DIN 42600, BS 3938, IEC 185 or IEC 60185, IEC 60044-1 and tested IEC 61869-2 standard.

FEATURE
• Measurement class 0.5, 1.0
• Primary current input 5A~6000A
• Safe, easy to install, portable
• Wide range of sizes to accommodate all the existing installations
• Wide inner window, allowing clamping of big cables
• Standard: EN60044-1, VDE0414-44-1, IEC60044-1, IEC61869-2

PRODUCT DATA

Primary current

5A to 6000A

Secondary current

1A, 5A

Rated burden

2.5VA to 20VA

Accuracy class

0.5, 1.0

System voltage

660V (AC) maximum

Operating frequency

AC 50Hz – 60Hz

Thermal short circuit current (Ith)

60 x In

Dynamic short circuit current (Idyn)

2.5 × lth

Instrument security factor FS

FS<5

Insulation class

E (120°C max.)

DOCUMENTATION

MIT – CT-Series_Low Voltage Current Transformer
